Product picture |
PartNumber |
Features
请选择
请选择
150mA Ultra-Low IQ Enable Input
1A Low Drop ADJ Output
250mA Ultra-Low IQ Enable Input
300mA Low IQ High PSRR Low Noise
300mA Low IQ Ultra High PSRR Ultra Low Noise
300mA Low IQ Very High PSRR Very Low Noise
300mA Ultra-Low IQ Enable Input
300mA, Ultra-Low IQ, Enable Input
300mA，Capacitor-Free，Low Drop
400mA Low IQ Ultra High PSRR Ultra Low Noise
500mA Low Drop ADJ Output
500mA Low Drop Enable Input
500mA Low Drop Fixed Output
|
VIN(V)
请选择
请选择
1.2~5.0
1.2~5.5
1.4~5.5
1.6~5.5
1.7~5.5
1.8~5.5
1.9~5.5
1.9~6.0
2.0~6.0
2.2~5.5
|
VOUT(V)
请选择
请选择
0.6/0.85/0.9/1.1/1.8
0.8/1.0/1.1/1.2/1.5/1.8/2.4/2.5/2.8/2.85/2.9/3.0/3.3
0.8/1.2/1.8/2.5/2.8/3.0/3.3
1.05/1.1/1.2/1.5/1.8/2.2/2.5/2.8/2.9/3.0/3.3
1.05/1.1/1.2/1.8/2.2/2.8/2.85/3.0/3.1/3.3
1.1/1.2/1.35/1.6/1.8/2.0/2.5/2.8/3.0/3.3
1.1/1.2/1.75/1.8/2.5/2.8/3.0/3/3
1.2/1.5/1.6/1.7/1.8/2.2/2.5/2.8/2.85/2.9/2.95/3.0/3.1/3.3
1.2/1.5/1.8/2.5/2.8/3.0/3.3
1.2/1.5/1.8/2.5/2.8/3.0/3.3/3.6V
1.2/1.8/2.8/3.3
1.2/1.8/3.0
1.8/2.2/2.8/3.0/3.3
1.8/2.8/3.0/3.3
ADJ/0.75~4.3
ADJ/1.0~3.6
ADJ/1.0~5.0
|
IOUT(mA)
请选择
请选择
150
250
300
400
500
1000
|
Dropout Voltage @IOUT (mV)
请选择
请选择
100@3.3V
135@2.8V
135@3.3V
160@2.8V
170@2.8V
180@1.8V
180@2.8V
190@2.8V
230@2.8V
240@2.8V
250@2.8V
265@2.8V
330@2.8V
350@1.8V
350@2.8V
370@3.3V
430@1.1V
|
IQ (μA)
请选择
请选择
0.2
0.6
0.8
15
20
42
45
50
55
60
110
|
PSRR@1kHz (dB)
请选择
请选择
55
60
62
70
75
78
80
100
|
Noise (μVRMS)
请选择
请选择
20×VOUT
9
10
35
40
50×VOUT
60
70
75
80
240
|
Package
请选择
请选择
DFN4(1.0X1.0)
DFN4(1.0X1.0)/ SOT23-5
DFN4(1.0X1.0)/ SOT23-3/ SOT23-5/ SC70-5/SOT89-3
DFN4(1.0X1.0)/ SOT23-5
DFN4(1.0X1.0)/ SOT23-5/SC70-5
DFN4(1.0X1.0)/ SOT23-5/SOT23-3
DFN4(1.0X1.0)/ WLCSP4(0.4 Pitch)
DFN4(1.0X1.0)/DFN4(0.8X0.8)/SOT23-5
DFN4(1.2X1.2)
DFN6(2.0X2.0)
DFN8(1.2X1.6)/ SOT23-5/ DFN6(2.0X2.0)/ DFN6(2.0X2.0)
SOT23-5
SOT23-5/ SOT89-5/DFN4(1.2X1.2)/ DFN6(2.0X2.0)
|
|---|---|---|---|---|---|---|---|---|---|---|
|
ET538XXYB | 400mA Low IQ Ultra High PSRR Ultra Low Noise | 2.2~5.5 | 1.8/2.2/2.8/3.0/3.3 | 400 | 180@2.8V | 20 | 100 | 9 | DFN4(1.0X1.0)/ WLCSP4(0.4 Pitch) |
|
ET633XX | 300mA Ultra-Low IQ Enable Input | 2.2~5.5 | 1.8/2.8/3.0/3.3 | 300 | 350@2.8V | 0.6 | 55 | 70 | DFN4(1.0X1.0)/ SOT23-5 |
|
ET631XX | 150mA Ultra-Low IQ Enable Input | 2.2~5.5 | 1.2/1.5/1.8/2.5/2.8/3.0/3.3 | 150 | 170@2.8V | 0.6 | 55 | 70 | DFN4(1.0X1.0)/ SOT23-5/SOT23-3 |
|
ET536XX | 300mA Low IQ Very High PSRR Very Low Noise | 1.6~5.5 | 1.05/1.1/1.2/1.8/2.2/2.8/2.85/3.0/3.1/3.3 | 300 | 160@2.8V | 45 | 78 | 40 | DFN4(1.0X1.0) |
|

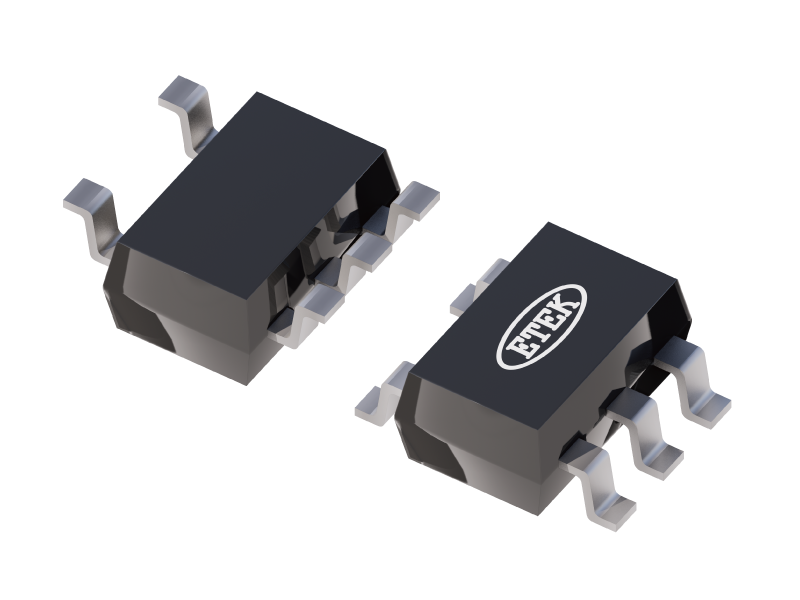

ET533XX | 300mA Low IQ High PSRR Low Noise | 2.0~6.0 | 1.1/1.2/1.35/1.6/1.8/2.0/2.5/2.8/3.0/3.3 | 300 | 240@2.8V | 42 | 75 | 75 | DFN4(1.0X1.0)/ SOT23-5/SC70-5 |
|

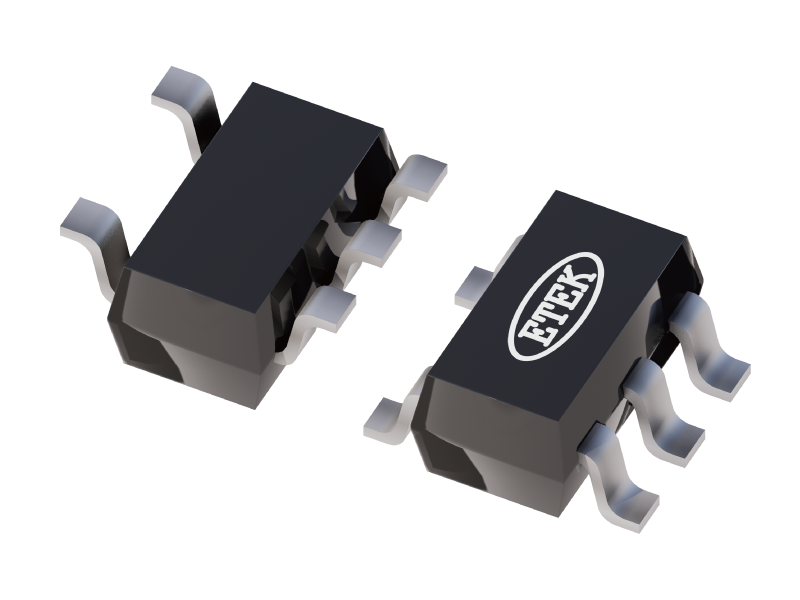

ET531XX | 300mA Low IQ Ultra High PSRR Ultra Low Noise | 1.9~5.5 | 1.2/1.5/1.6/1.7/1.8/2.2/2.5/2.8/2.85/2.9/2.95/3.0/3.1/3.3 | 300 | 135@2.8V | 15 | 80 | 10 | DFN4(1.0X1.0)/ SOT23-5 |
|
ET634XX | 250mA Ultra-Low IQ Enable Input | 1.8~5.5 | 1.2/1.5/1.8/2.5/2.8/3.0/3.3/3.6V | 250 | 330@2.8V | 0.8 | 62 | 80 | DFN4(1.0X1.0)/DFN4(0.8X0.8)/SOT23-5 |
|
ET5A0XX | 1A Low Drop ADJ Output | 1.8~5.5 | 1.1/1.2/1.75/1.8/2.5/2.8/3.0/3/3 | 1000 | 100@3.3V | 110 | 70 | 50×VOUT | DFN8(1.2X1.6)/ SOT23-5/ DFN6(2.0X2.0)/ DFN6(2.0X2.0) |
|

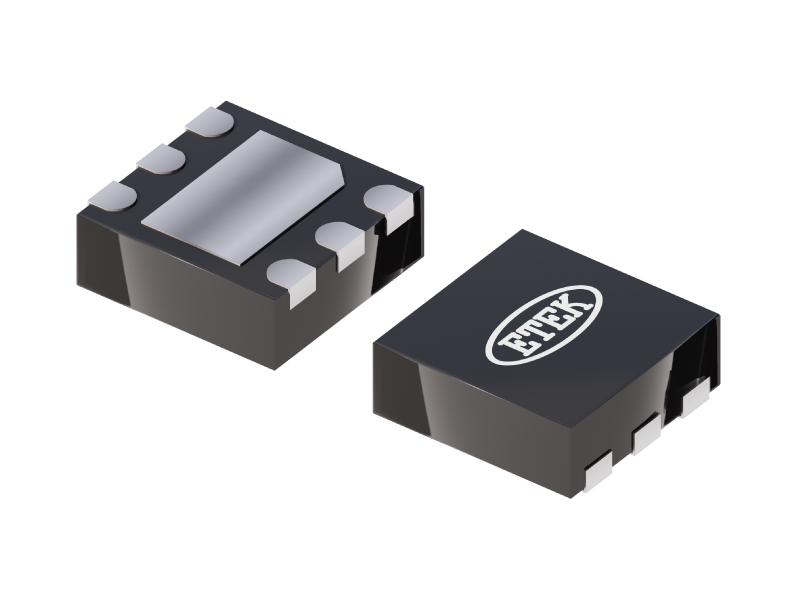

ET5A0ADJY2B | 1A Low Drop ADJ Output | 1.8~5.5 | ADJ/0.75~4.3 | 1000 | 135@3.3V | 110 | 70 | 50×VOUT | DFN6(2.0X2.0) |
|

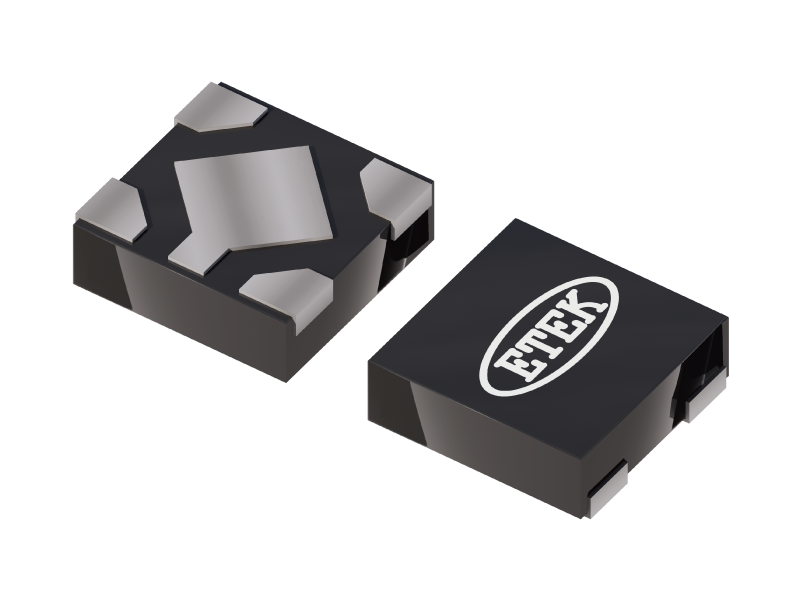

ETQ553ADJYB | 500mA Low Drop ADJ Output | 1.9~5.5 | ADJ/1.0~3.6 | 500 | 350@1.8V | 50 | 80 | 20×VOUT | DFN4(1.2X1.2) |
|

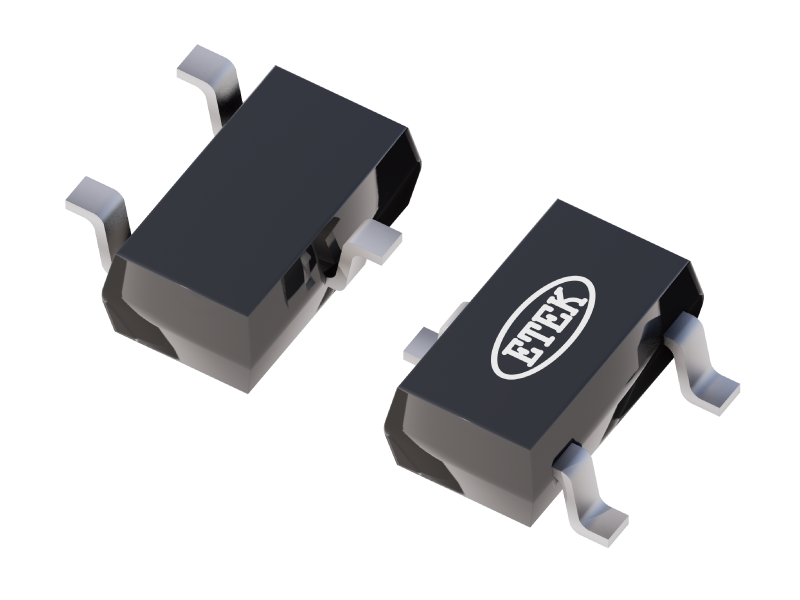

ET553XX | 500mA Low Drop Fixed Output | 1.9~5.5 | 1.8/2.8/3.0/3.3 | 500 | 350@1.8V | 50 | 80 | 20×VOUT | DFN4(1.0X1.0)/ SOT23-3/ SOT23-5/ SC70-5/SOT89-3 |
|
ET553ADJ | 500mA Low Drop ADJ Output | 1.9~5.5 | ADJ/1.0~5.0 | 500 | 350@1.8V | 50 | 80 | 20×VOUT | SOT23-5/ SOT89-5/DFN4(1.2X1.2)/ DFN6(2.0X2.0) |
|
ET552XX | 500mA Low Drop Enable Input | 1.2~5.0 | 0.6/0.85/0.9/1.1/1.8 | 500 | 430@1.1V | 55 | 80 | 40 | DFN4(1.0X1.0) |
|
ET523XX | 300mA Low IQ High PSRR Low Noise | 1.7~5.5 | 1.2/1.5/1.8/2.5/2.8/3.0/3.3 | 300 | 265@2.8V | 50 | 75 | 70 | DFN4(1.0X1.0)/ SOT23-5 |
|
ET519XX | 300mA，Capacitor-Free，Low Drop | 1.4~5.5 | 1.2/1.8/3.0 | 300 | 180@1.8V | 60 | 60 | 240 | SOT23-5 |
|
ET518XX | 300mA Low IQ High PSRR Low Noise | 1.7~5.5 | 0.8/1.2/1.8/2.5/2.8/3.0/3.3 | 300 | 230@2.8V | 45 | 70 | 35 | DFN4(1.0X1.0) |
|
ET516XX | 300mA Low IQ High PSRR Low Noise | 1.9~5.5 | 0.8/1.0/1.1/1.2/1.5/1.8/2.4/2.5/2.8/2.85/2.9/3.0/3.3 | 300 | 190@2.8V | 45 | 75 | 60 | DFN4(1.0X1.0)/ SOT23-5/SC70-5 |
|
ET515XX | 300mA Low IQ High PSRR Low Noise | 1.9~6.0 | 1.05/1.1/1.2/1.5/1.8/2.2/2.5/2.8/2.9/3.0/3.3 | 300 | 250@2.8V | 42 | 75 | 70 | DFN4(1.0X1.0) |
|
ET635XX | 300mA, Ultra-Low IQ, Enable Input | 1.2~5.5 | 1.2/1.8/2.8/3.3 | 300 | 370@3.3V | 0.2 | 60 | 70 | DFN4(1.0X1.0)/ SOT23-5 |
